Detalles del producto

Lift height: 2000-6000 mm / Capacity: 2000 kg

The certified generalist for ultra out of door situations.
Sustained, saving and low maintenance.
Our rough and formidable 2 ton LPG forklift trucks are perfect for all heaping and conveying tasks out-of-doors, especially when fast reversing is required. They provide highest quality and maximum dependability – whatever the dare may be.
These widespread 2 ton LPG forklift trucks with torque converters offer continuously high production quantity at low consumption as well as high driving firmness thanks to tried-and-tested GCT industrial engines. Other advantages contain smooth starting, low oscillation driving and minimized noise development inside the cabin.
Thanks to the special counterweight design, the forklift truck’s low centre of gravity ensures high firmness and driving safety. The first-rank all-round visibility and a wide range of equipment options make for safe working conditions. All ergonomic solutions are operator-oriented and highly functional – the best basis for single-minded and competent operations in the warehouse.

All the advantages at a glance
• Optimal visibility thanks to mast design
• Powerful and competent GCT industrial motors
• Functional, safe and low-vibration work condition

Your YCMG forklift for maximum customer advantage.
Efficiency
Maximum performance with the most efficient vehicles.
High torque even at low speeds: Thanks to a strong and reliable engine, our forklifts run each circle with optimum consumption.
Powerful and efficient drive concept
• Proven industrial engines from GCT in Gasoline and LPG models, designed for lifespan, obdurability and dependability.
• High torque at low speeds.
• Engines with low emissions (North America Tier 4 Final).
• Low-consumption engines boost energy efficiency and slows down the ageing of the oil.

High-performance cooling system with combination cooler
• Heavy-duty combination cooler in aluminium plate-fin design for engine coolant, converter and transmission oil.
• Easy cleaning due to perpendicular arrangement of cooling parts for engine coolant, converter and transmission oil.
• Completely closed system –therefore no coolant vaporization.
• Reliable operation without a reduction in performance even at extreme surrounding temperatures.

Safety
Best prepared for safe warehouse operations
Innovative counterbalance weight design, first-rank all-round visibility and integrated safety equipment make our forklifts excellent assistants .

Reinforced safety
• Overhead guard height suitable for containers.
• Counterweight design with low centre of gravity for excellent stability.
• Water-proof electrics, plug and connections.

Lift mast with first rank of vision
• Optimal view of the load thanks to lift mast design giving good visibility, with optimal chain and hose.

Additional safety features
• Operator Presence Sensing system will automatically stop moving forward and reverse, loading and unloading after the operator leaves the truck three seconds.

Personality
A truck as unique as your business.
Designed for every adhibition: Our functional workplaces with operator-oriented ergonomic solutions are appropriate for every use.

Ergonomic operator working station
• Optimal visibility in all directions.
• Firm hydraulic levers positioned for easy use.
• Optimal allocation of display and switches for additional equipment (e.g. Optinal blue light and optional wipers) within the operator’s reach and field of vision.
• Numerous storage options, such as small tool box, documents clip.
• Automotive pedal allocation with non-slip surface.

Easy to maintain
• Optimal access to engine compartment due to 70°opening.
• Back floor plate easy to remove by hand.

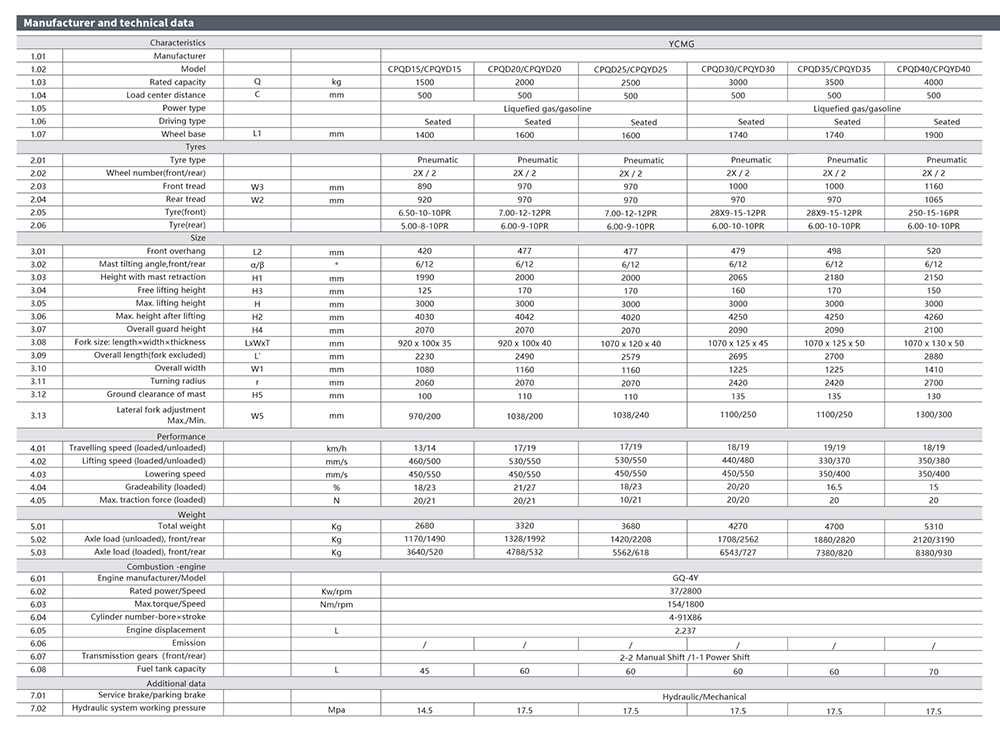

Especificación de 2 toneladas de GPL y gasolina carretilla elevadora carretilla elevadora
Información principal
1	Fabricante		YICHA
2	Modelo		Unit	CPQD20	CPQYD20
3	Tipo de potencia			GPL y Gasolina
4	Capacidad nominal		kg	2000
5	Centro de carga		mm	500
6	Tipo de operador			Drive in seat
Tamaño
7	Altura máxima de elevación del mástil sin respaldo de carga		mm	4030
8	Altura de elevación máxima del tenedor (estándar)		mm	3000
9	Altura del mástil (estándar)		mm	2000
10	Altura de elevación libre (estándar)		mm	170
11	Altura del respaldo de carga		mm	1010
12	Distancia del asiento a la guardia superior		mm	1000
13	Altura del protector		mm	2070
14	Longitud sin tenedor		mm	3572/2502
15	Saliente delantero		mm	477
16	Saliente trasero		mm	420
17	Base de ruedas		mm	1600
18	La altura del pin de tracción		mm	290
19	Deslizamiento mínimo al suelo		mm	110
20	Anchura total		mm	1170
21	La distancia entre las horquillas		mm	1024/200
22	Banda de rodadura (delantera / trasera)		mm	970/970
23	Radio de giro mínimo (fuera)		mm	2170
24	Radio de giro mínimo (dentro)		mm	160
25	Min. Pasillo de intersección		mm	2200
26	Ángulo de inclinación del mástil		deg	6° / 12°
27	Tamaño de la tenedora		mm	1070x100x40
Rendimiento
28	Velocidades	Velocidades Max.Drive (con / sin carga)	km/h	17/19
29		Velocidades de elevación (con carga)	mm/s	530/550
30		Reducción de velocidades (con / sin carga completa)	mm/s	450/550
31	Fuerza de tracción máxima		KN	20/15	21/15
32	Capacidad Max.grade (con/sin carga completa)		%	21/20	27/20
Peso
33	Peso total		kg	3320
34	Distribución de peso carga completa (delantera/trasera)		kg	4788/532
35	Distribución de peso carga cero (delantera / trasera)		kg	1328/1922
Ruedas y neumáticos
36	Cantidad de ruedas			2 X / 2
37	Tipo de neumáticos			Neumáticos penumáticos
38	Neumáticos	Front		7.00-12-12PR
39		Rear		6.00-9-10PR
40	Freno de conducción			Pedal hidráulico
41	Freno de estacionamiento			Manual mecánico
Dispositivo de control para conducir y transmitir
42	Batería		V/AH	12/80
43	Motor (estándar)	Modelo		GQ-4Y
44		Salida nominal	kw/rpm	47/2800
45		Par nominal	N.m/rpm	154/1800
46		No.de cilindro		4-90X86
47		Desplazamiento	L	2.237
48	Capacidad del tanque de combustible		L	60
49	Número de velocidades para la transmisión			2-2 Transmisión de cambio manual / 1-1 Transmisión de cambio de potencia
